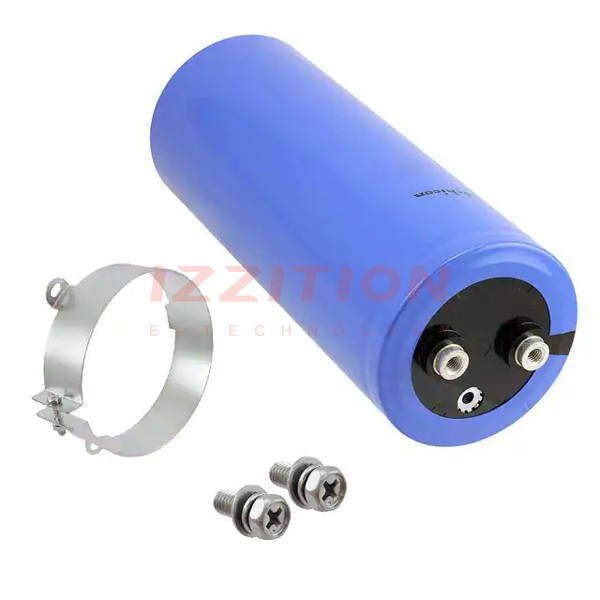

| Part Number | LNR1K334MSE | LNR1V334MSE | LNR1A334MSE | LNR1C334MSE | LNR1E334MSE | LNR1H334MSE | LNR1J334MSE | LNR1K333MSE |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 330000 µF | 330000 µF | 330000 µF | 330000 µF | 330000 µF | 330000 µF | 330000 µF | 33000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 80 V | 35 V | 10 V | 16 V | 25 V | 50 V | 63 V | 80 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 31.8 A @ 120 Hz | 24.8 A @ 120 Hz | 15.9 A @ 120 Hz | 25.1 A @ 120 Hz | 24.8 A @ 120 Hz | 25.3 A @ 120 Hz | 31.2 A @ 120 Hz | 9.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 36.57 A @ 10 kHz | 28.52 A @ 10 kHz | 18.285 A @ 10 kHz | 28.865 A @ 10 kHz | 28.52 A @ 10 kHz | 29.095 A @ 10 kHz | 29.095 A @ 10 kHz | 10.58 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 1.634" (41.50mm) | 1.252" (31.80mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 0.866" (22.00mm) |
| Size / Dimension | 3.937" Dia (100.00mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 3.000" Dia (76.20mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 10.000" (254.00mm) | 5.630" (143.00mm) | 4.055" (103.00mm) | 4.843" (123.00mm) | 4.843" (123.00mm) | 6.811" (173.00mm) | 8.780" (223.00mm) | 4.843" (123.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
