Please send RFQ , we will respond immediately.

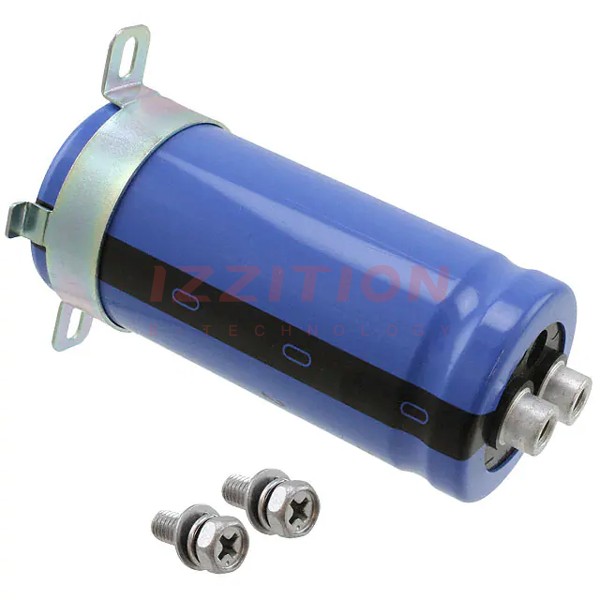

| Part Number | LNR1J103MSE | LNR1K103MSE | LNR1J104MSE | LNR1J153MSE |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10000 µF | 10000 µF | 100000 µF | 15000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 80 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 4.1 A @ 120 Hz | 4.2 A @ 120 Hz | 20.8 A @ 120 Hz | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.715 A @ 10 kHz | 4.83 A @ 10 kHz | 23.92 A @ 10 kHz | 6.325 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.500" (12.70mm) | 0.500" (12.70mm) | 1.126" (28.60mm) | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 2.500" Dia (63.50mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) | 3.268" (83.00mm) | 5.630" (143.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
