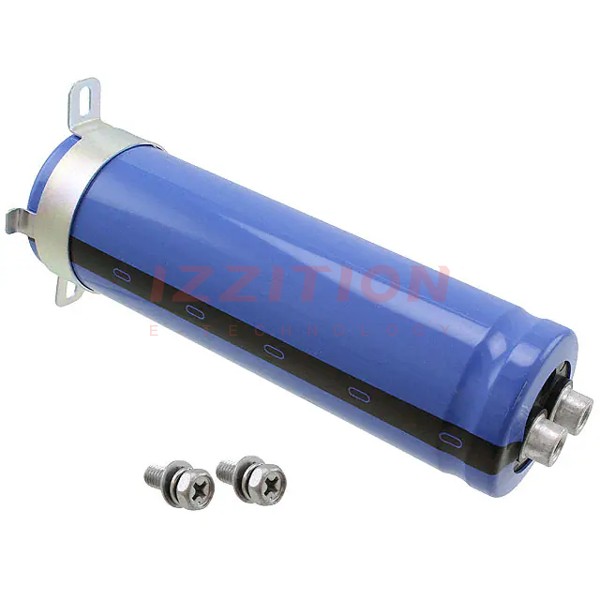

| Part Number | LNR1E683MSE | LNR1V683MSE | LNR1H683MSE | LNR1E684MSE | LNR1K683MSE | LNR1J683MSE | LNR1A683MSE | LNR1C683MSE |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 68000 µF | 68000 µF | 68000 µF | 680000 µF | 68000 µF | 68000 µF | 68000 µF | 68000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 35 V | 50 V | 25 V | 80 V | 63 V | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 9.4 A @ 120 Hz | 9.3 A @ 120 Hz | 11 A @ 120 Hz | 33.3 A @ 120 Hz | 15.5 A @ 120 Hz | 15 A @ 120 Hz | 7.2 A @ 120 Hz | 7.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.81 A @ 10 kHz | 10.81 A @ 10 kHz | 12.65 A @ 10 kHz | - | 17.825 A @ 10 kHz | 12.65 A @ 10 kHz | 8.28 A @ 10 kHz | 9.085 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.500" (12.70mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 1.252" (31.80mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 3.543" Dia (90.00mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) | 3.268" (83.00mm) | 4.055" (103.00mm) | 8.780" (223.00mm) | 5.630" (143.00mm) | 4.055" (103.00mm) | 3.268" (83.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
