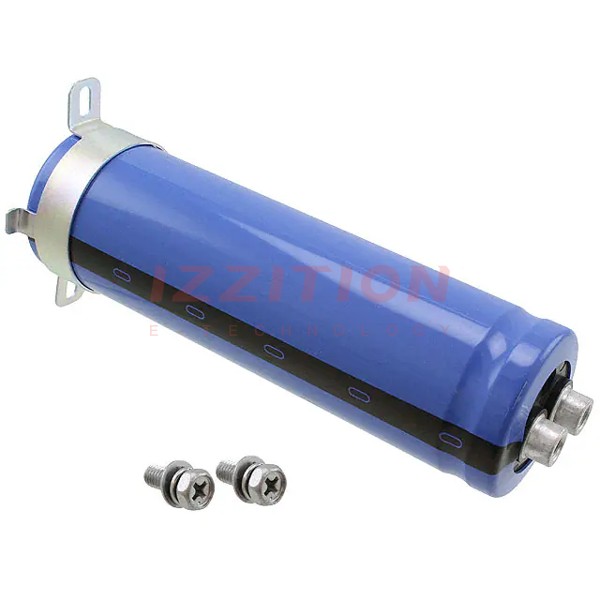

| Part Number | LNR1C104MSE | LNR1C105MSE | LNR1K104MSE | LNR1J104MSE | LNR2C104MSE | LNR1E104MSE | LNR1C154MSE | LNR1H104MSE | LNR1V104MSE | LNR1A104MSE |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 100000 µF | 1 F | 100000 µF | 100000 µF | 100000 µF | 100000 µF | 150000 µF | 100000 µF | 100000 µF | 100000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 80 V | 63 V | 160 V | 25 V | 16 V | 50 V | 35 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 10.6 A @ 120 Hz | 36 A @ 120 Hz | 21.3 A @ 120 Hz | 20.8 A @ 120 Hz | 24.4 A @ 120 Hz | 12 A @ 120 Hz | 11.5 A @ 120 Hz | 14.2 A @ 120 Hz | 13.6 A @ 120 Hz | 8.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.19 A @ 10 kHz | - | 24.495 A @ 10 kHz | 23.92 A @ 10 kHz | 29.28 A @ 10 kHz | 13.8 A @ 10 kHz | 13.225 A @ 10 kHz | 16.33 A @ 10 kHz | 13.8 A @ 10 kHz | 10.12 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.500" (12.70mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.126" (28.60mm) | 1.634" (41.50mm) | 0.866" (22.00mm) | 0.866" (22.00mm) | 1.126" (28.60mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 3.543" Dia (90.00mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) | 3.937" Dia (100.00mm) | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) | 2.500" Dia (63.50mm) | 2.008" Dia (51.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) | 8.780" (223.00mm) | 5.630" (143.00mm) | 5.630" (143.00mm) | 10.000" (254.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) | 4.055" (103.00mm) | 4.843" (123.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
