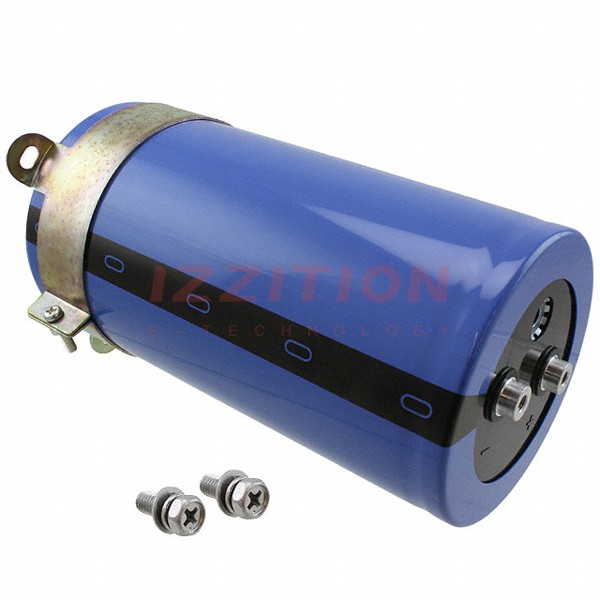

| Part Number | LNR1A105MSE | LNR1C105MSE | LNR1A155MSE | LNR1V105MSE | LNR1E105MSE | LNR1A104MSE |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 F | 1 F | 1.5 F | 1 F | 1 F | 100000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 10 V | 35 V | 25 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 27.7 A @ 120 Hz | 36 A @ 120 Hz | 33.9 A @ 120 Hz | 38.5 A @ 120 Hz | 36.4 A @ 120 Hz | 8.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 31.855 A @ 10 kHz | - | - | 41.86 A @ 10 kHz | - | 10.12 A @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.634" (41.50mm) | 1.634" (41.50mm) | 0.500" (12.70mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.937" Dia (100.00mm) | 3.937" Dia (100.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 6.811" (173.00mm) | 8.780" (223.00mm) | 8.780" (223.00mm) | 10.000" (254.00mm) | 10.000" (254.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
