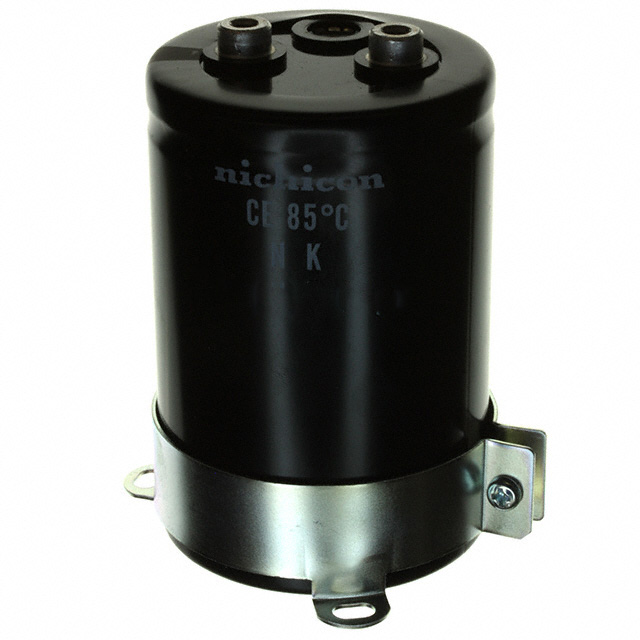

| Part Number | LNK2V332MSEG | LNK2V392MSEG | LNK2W332MSEG | LNC2V332MSEG | LNK2G332MSEG |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 3300 µF | 3900 µF | 3300 µF | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V | 450 V | 350 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 11.8 A @ 120 Hz | 12.8 A @ 120 Hz | 12.1 A @ 120 Hz | 14 A @ 120 Hz | 11.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.52 A @ 10 kHz | 17.92 A @ 10 kHz | 16.94 A @ 10 kHz | 19.6 A @ 10 kHz | 16.52 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 3.740" (95.00mm) | 3.937" (100.00mm) | 4.528" (115.00mm) | 3.268" (83.00mm) | 3.740" (95.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
