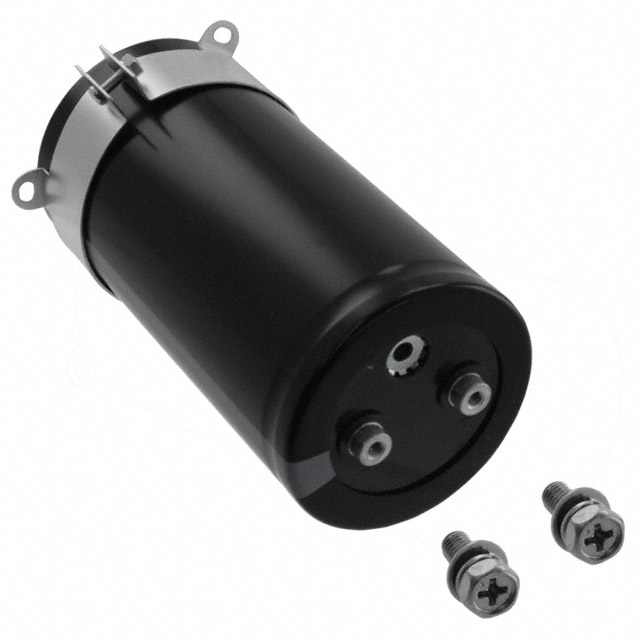

| Part Number | LNK2H392MSEH | LNK2W392MSEH | LNK2H392MSEJ | LNK2V392MSEH | LNC2H392MSEH | LNK2G392MSEH | LNK2H332MSEH |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 3900 µF | 3900 µF | 3900 µF | 3900 µF | 3900 µF | 3900 µF | 3300 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 500 V | 450 V | 500 V | 350 V | 500 V | 400 V | 500 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 14.4 A @ 120 Hz | 14.2 A @ 120 Hz | 14.4 A @ 120 Hz | 13 A @ 120 Hz | 19.9 A @ 120 Hz | 13 A @ 120 Hz | 12.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 20.16 A @ 10 kHz | 19.88 A @ 10 kHz | 20.16 A @ 10 kHz | 18.2 A @ 10 kHz | 27.86 A @ 10 kHz | 18.2 A @ 10 kHz | 17.36 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.543" Dia (90.00mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.906" (150.00mm) | 4.331" (110.00mm) | 4.724" (120.00mm) | 3.346" (85.00mm) | 4.843" (123.00mm) | 3.740" (95.00mm) | 4.528" (115.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
