Please send RFQ , we will respond immediately.

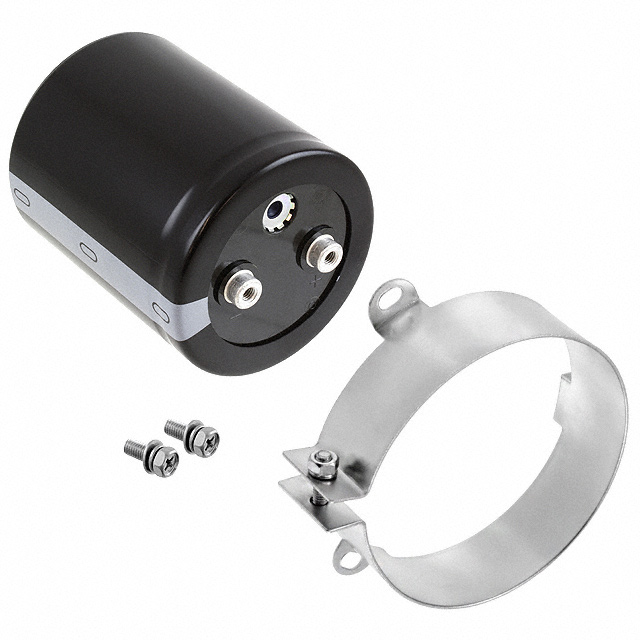

| Part Number | LNC2W392MSEH | LNK2W392MSEH | LNC2G392MSEH | LNC2H392MSEH | LNC2V392MSEH | LNC2W332MSEH | LNC2W392MSEG |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 3900 µF | 3900 µF | 3900 µF | 3900 µF | 3900 µF | 3300 µF | 3900 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 400 V | 500 V | 350 V | 450 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 17 A @ 120 Hz | 14.2 A @ 120 Hz | 17.1 A @ 120 Hz | 19.9 A @ 120 Hz | 14.3 A @ 120 Hz | 15.5 A @ 120 Hz | 17.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 23.8 A @ 10 kHz | 19.88 A @ 10 kHz | 23.94 A @ 10 kHz | 27.86 A @ 10 kHz | 20.02 A @ 10 kHz | 21.7 A @ 10 kHz | 24.22 A @ 10 kHz |
| Impedance | - | - | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.126" (28.60mm) |
| Size / Dimension | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 3.661" (93.00mm) | 4.331" (110.00mm) | 3.268" (83.00mm) | 4.843" (123.00mm) | 2.874" (73.00mm) | 3.465" (88.00mm) | 5.433" (138.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
