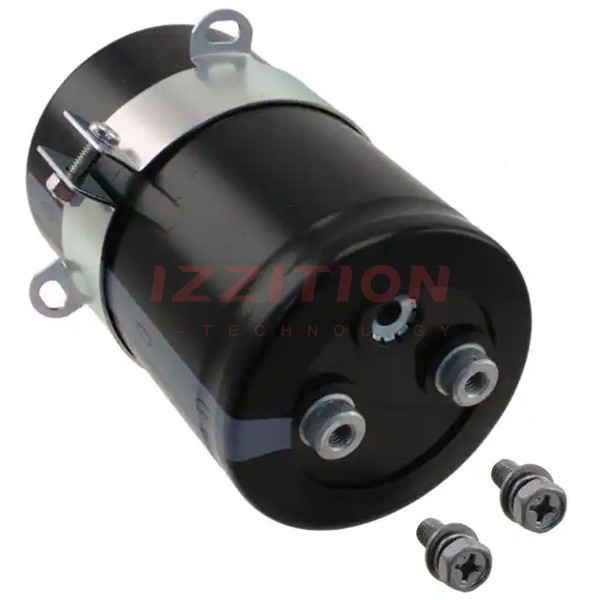

| Part Number | LNC2V562MSEG | LNC2W562MSEG | LNC2V562MSEH | LNK2V562MSEG | LNC2G562MSEG |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 5600 µF | 5600 µF | 5600 µF | 5600 µF | 5600 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 450 V | 350 V | 350 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 18.1 A @ 120 Hz | 21.4 A @ 120 Hz | 17.6 A @ 120 Hz | 17.3 A @ 120 Hz | 20.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 25.34 A @ 10 kHz | 29.96 A @ 10 kHz | 24.64 A @ 10 kHz | 24.22 A @ 10 kHz | 29.26 A @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 1.126" (28.60mm) | 1.126" (28.60mm) | 1.252" (31.80mm) | 1.126" (28.60mm) | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) | 3.000" Dia (76.20mm) | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.646" (118.00mm) | 6.614" (168.00mm) | 3.661" (93.00mm) | 5.118" (130.00mm) | 5.433" (138.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
