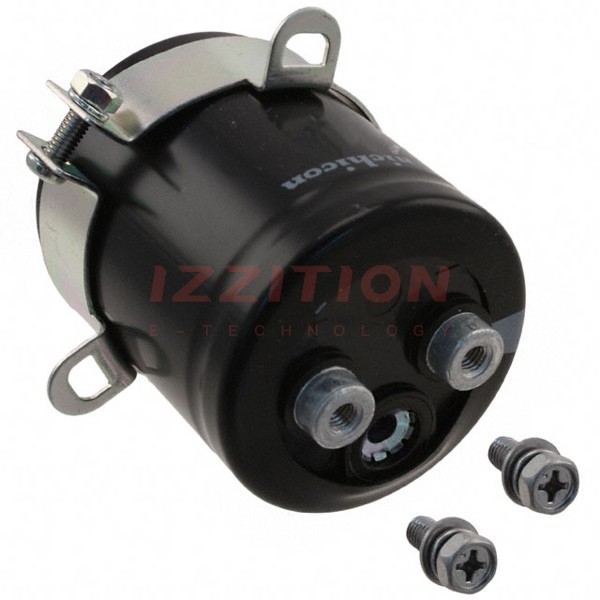

| Part Number | LNC2V332MSEF | LNC2V332MSEG |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 13.6 A @ 120 Hz | 14 A @ 120 Hz |
| Ripple Current @ High Frequency | 19.04 A @ 10 kHz | 19.6 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.866" (22.00mm) | 1.126" (28.60mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.646" (118.00mm) | 3.268" (83.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
