Please send RFQ , we will respond immediately.

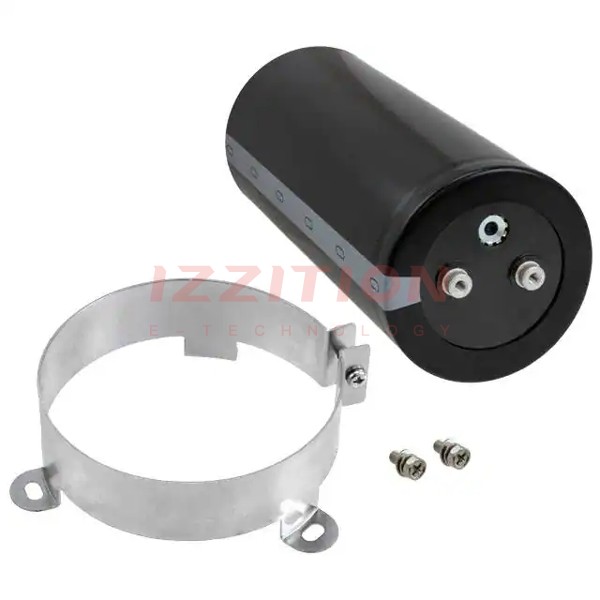

| Part Number | LNC2V183MSEJ | LNC2G183MSEJ | LNC2V103MSEJ | LNC2V123MSEJ | LNC2V153MSEJ |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 18000 µF | 18000 µF | 10000 µF | 12000 µF | 15000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 400 V | 350 V | 350 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 39.2 A @ 120 Hz | 48.2 A @ 120 Hz | 27.1 A @ 120 Hz | 30.1 A @ 120 Hz | 35.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 54.88 A @ 10 kHz | - | 37.94 A @ 10 kHz | 42.14 A @ 10 kHz | - |
| Impedance | - | - | - | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.614" (168.00mm) | 8.189" (208.00mm) | 4.055" (103.00mm) | 4.843" (123.00mm) | 5.827" (148.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
