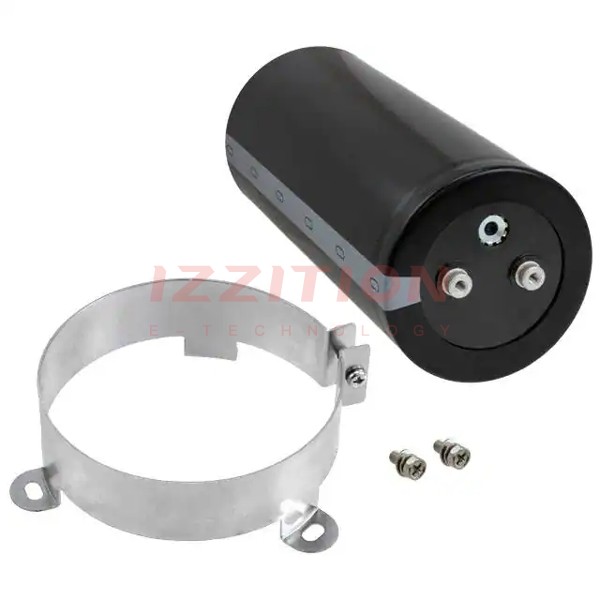

| Part Number | LNC2H472MSEJ | LNK2H472MSEJ |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 4700 µF | 4700 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 500 V | 500 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 23.6 A @ 120 Hz | 15.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 33.04 A @ 10 kHz | 22.12 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 1.252" (31.80mm) | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 4.252" (108.00mm) | 5.118" (130.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
