LLS2W151MELZ
  • Share:

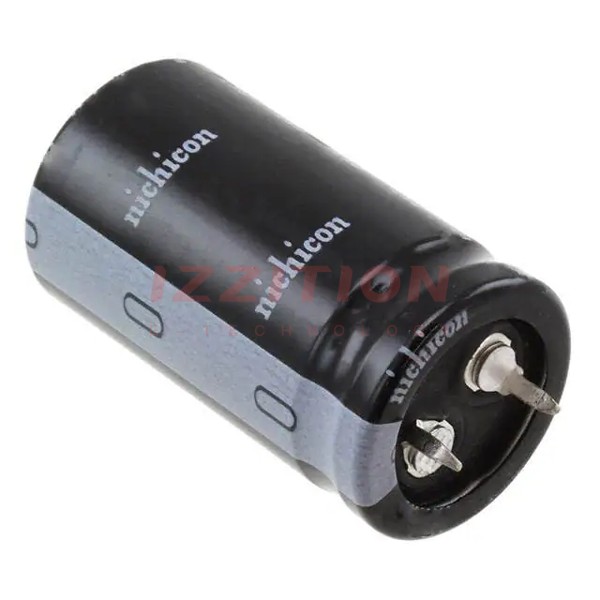

Nichicon LLS2W151MELZ

Manufacturer No:
LLS2W151MELZ
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
LLS2W151MELZ Datasheet
ECAD Model:
-
Description:
CAP ALUM 150UF 20% 450V SNAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:150 µF
Tolerance:±20%
Voltage - Rated:450 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:3000 Hrs @ 85°C
Operating Temperature:-25°C ~ 85°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:1.18 A @ 120 Hz
Ripple Current @ High Frequency:1.6874 A @ 50 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:0.866" Dia (22.00mm)
Height - Seated (Max):1.575" (40.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
0 Remaining View Similar

In Stock

$4.74
166

Please send RFQ , we will respond immediately.

Similar Products

Part Number LLS2W151MELZ LLS2W181MELZ   LLS2G151MELZ   LLS2V151MELZ   LLS2W101MELZ   LLS2W121MELZ   LLS2W151MELA   LLS2W151MELB
Manufacturer Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon
Product Status Active Active Active Active Active Active Active Active
Capacitance 150 µF 180 µF 150 µF 150 µF 100 µF 120 µF 150 µF 150 µF
Tolerance ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±20%
Voltage - Rated 450 V 450 V 400 V 350 V 450 V 450 V 450 V 450 V
ESR (Equivalent Series Resistance) - - - - - - - -
Lifetime @ Temp. 3000 Hrs @ 85°C 3000 Hrs @ 85°C 3000 Hrs @ 85°C 3000 Hrs @ 85°C 3000 Hrs @ 85°C 3000 Hrs @ 85°C 3000 Hrs @ 85°C 3000 Hrs @ 85°C
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
Polarization Polar Polar Polar Polar Polar Polar Polar Polar
Ratings - - - - - - - -
Applications General Purpose General Purpose General Purpose General Purpose General Purpose General Purpose General Purpose General Purpose
Ripple Current @ Low Frequency 1.18 A @ 120 Hz 1.32 A @ 120 Hz 1.24 A @ 120 Hz 1.2 A @ 120 Hz 950 mA @ 120 Hz 1.07 A @ 120 Hz 1.25 A @ 120 Hz 1.29 A @ 120 Hz
Ripple Current @ High Frequency 1.6874 A @ 50 kHz 1.8876 A @ 50 kHz 1.7732 A @ 50 kHz 1.716 A @ 50 kHz 1.3585 A @ 50 kHz - 1.7875 A @ 50 kHz 1.8447 A @ 50 kHz
Impedance - - - - - - - -
Lead Spacing 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.984" Dia (25.00mm) 1.181" Dia (30.00mm)
Height - Seated (Max) 1.575" (40.00mm) 1.772" (45.00mm) 1.378" (35.00mm) 1.260" (32.00mm) 1.181" (30.00mm) 1.378" (35.00mm) 1.181" (30.00mm) 0.984" (25.00mm)
Surface Mount Land Size - - - - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In
