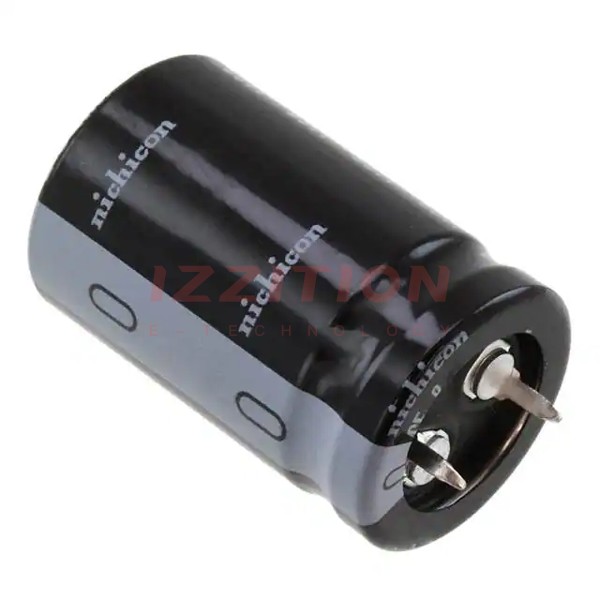

| Part Number | LLS2W121MELZ | LLS2W151MELZ | LLS2W181MELZ | LLS2G121MELZ | LLS2V121MELZ | LLS2W101MELZ | LLS2W121MELA | LLS2W121MELB | LLS2W121MELY |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 120 µF | 150 µF | 180 µF | 120 µF | 120 µF | 100 µF | 120 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V | 450 V | 400 V | 350 V | 450 V | 450 V | 450 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.07 A @ 120 Hz | 1.18 A @ 120 Hz | 1.32 A @ 120 Hz | 1.09 A @ 120 Hz | 1.04 A @ 120 Hz | 950 mA @ 120 Hz | 1.09 A @ 120 Hz | 1.12 A @ 120 Hz | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 1.6874 A @ 50 kHz | 1.8876 A @ 50 kHz | 1.5587 A @ 50 kHz | 1.4872 A @ 50 kHz | 1.3585 A @ 50 kHz | 1.5587 A @ 50 kHz | 1.6016 A @ 50 kHz | 1.4157 A @ 50 kHz |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) | 1.575" (40.00mm) | 1.772" (45.00mm) | 1.181" (30.00mm) | 1.063" (27.00mm) | 1.181" (30.00mm) | 1.181" (30.00mm) | 0.984" (25.00mm) | 1.575" (40.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
