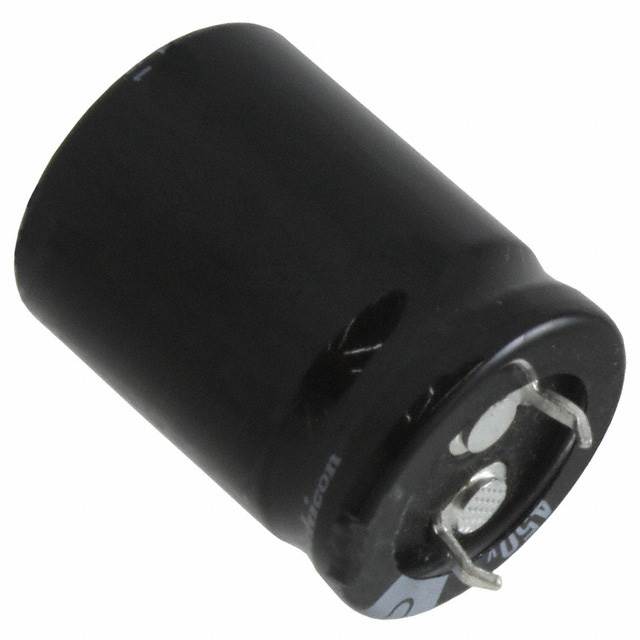

| Part Number | LLS2G121MELZ | LLS2G151MELZ | LLS2G221MELZ | LLS2V121MELZ | LLS2W121MELZ | LLS2G181MELZ | LLS2G101MELZ | LLS2G121MELA | LLS2G121MELY |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 120 µF | 150 µF | 220 µF | 120 µF | 120 µF | 180 µF | 100 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V | 400 V | 350 V | 450 V | 400 V | 400 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.09 A @ 120 Hz | 1.24 A @ 120 Hz | 1.58 A @ 120 Hz | 1.04 A @ 120 Hz | 1.07 A @ 120 Hz | 1.41 A @ 120 Hz | 950 mA @ 120 Hz | 1.13 A @ 120 Hz | 1.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5587 A @ 50 kHz | 1.7732 A @ 50 kHz | 2.2594 A @ 50 kHz | 1.4872 A @ 50 kHz | - | 2.0163 A @ 50 kHz | 1.3585 A @ 50 kHz | 1.6159 A @ 50 kHz | - |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.378" (35.00mm) | 1.772" (45.00mm) | 1.063" (27.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 1.378" (35.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
