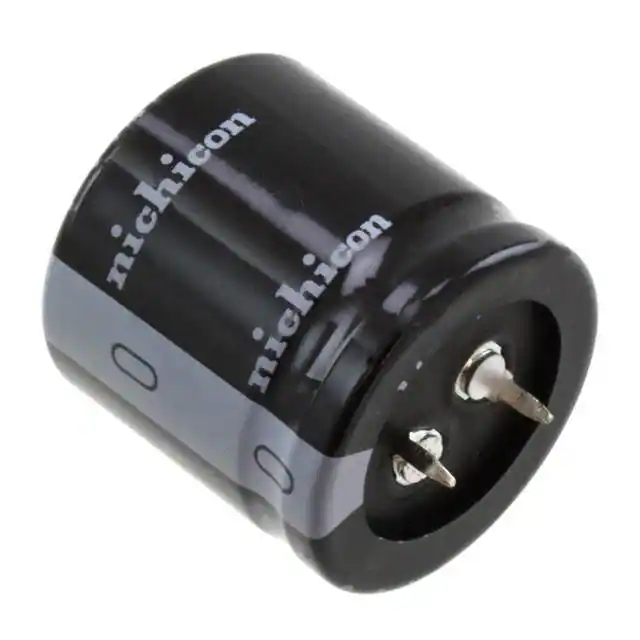

| Part Number | LLS2C102MELB | LLS2E102MELB | LLS2D102MELB | LLS2C102MELZ | LLS2C122MELB | LLS2C152MELB | LLS2C182MELB | LLS2C102MELC | LLS2C102MELA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Capacitance | 1000 µF | 1000 µF | 1000 µF | 1000 µF | 1200 µF | 1500 µF | 1800 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 250 V | 200 V | 160 V | 160 V | 160 V | 160 V | 160 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.96 A @ 120 Hz | 3.56 A @ 120 Hz | 3.15 A @ 120 Hz | 3.02 A @ 120 Hz | 3.41 A @ 120 Hz | 3.96 A @ 120 Hz | 4.31 A @ 120 Hz | - | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.44 A @ 50 kHz | 5.34 A @ 50 kHz | 4.725 A @ 50 kHz | 4.53 A @ 50 kHz | 5.115 A @ 50 kHz | 5.94 A @ 50 kHz | 6.465 A @ 50 kHz | - | 4.5 A @ 50 kHz |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.866" Dia (22.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | - | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.575" (40.00mm) | 1.378" (35.00mm) | 1.772" (45.00mm) | 1.181" (30.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
