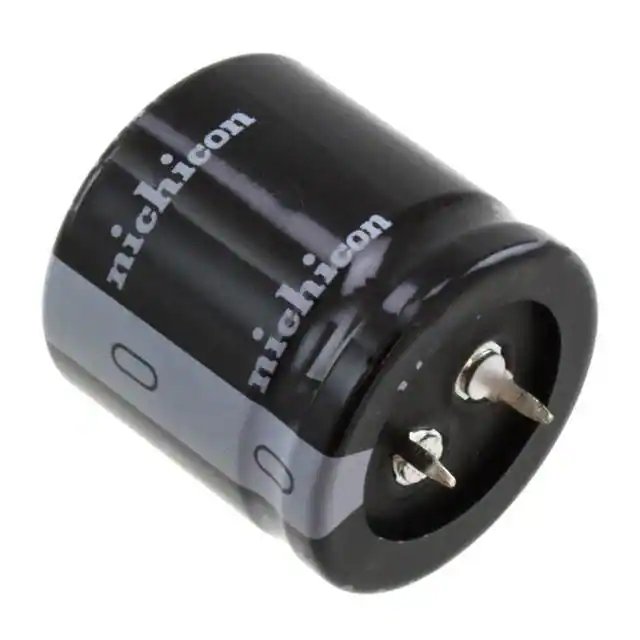

| Part Number | LLS1V103MELB | LLS1V123MELB | LLS1V153MELB | LLS1V183MELB | LLS1V103MELZ | LLS1H103MELB | LLS1J103MELB | LLS1V103MELA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 µF | 12000 µF | 15000 µF | 18000 µF | 10000 µF | 10000 µF | 10000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V | 35 V | 50 V | 63 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.61 A @ 120 Hz | 4.14 A @ 120 Hz | 4.8 A @ 120 Hz | 5.3 A @ 120 Hz | 3.75 A @ 120 Hz | 5.08 A @ 120 Hz | 5.78 A @ 120 Hz | 3.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.1515 A @ 50 kHz | 4.761 A @ 50 kHz | 5.52 A @ 50 kHz | 6.095 A @ 50 kHz | 4.3125 A @ 50 kHz | 5.842 A @ 50 kHz | 6.647 A @ 50 kHz | 4.1975 A @ 50 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.866" Dia (22.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.457" (37.00mm) | 1.654" (42.00mm) | 1.850" (47.00mm) | 2.047" (52.00mm) | 1.654" (42.00mm) | 2.047" (52.00mm) | 1.654" (42.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
