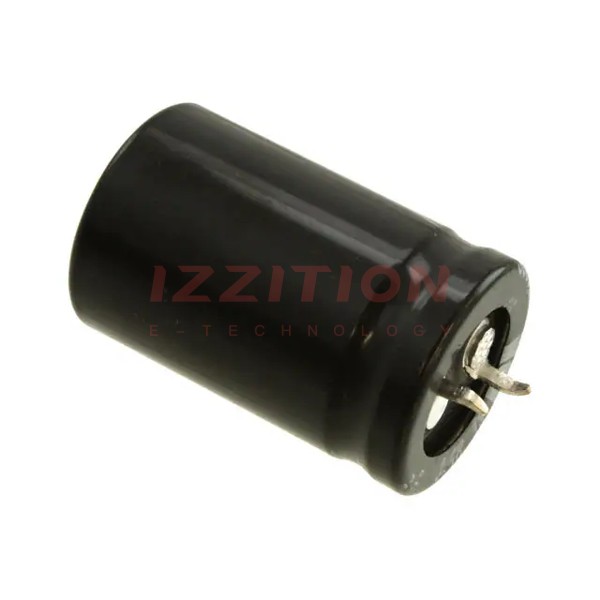

| Part Number | LLS1J272MELZ | LLS1J472MELZ | LLS1K272MELZ | LLS1H272MELZ | LLS1J222MELZ | LLS1J272MELA |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 2700 µF | 4700 µF | 2700 µF | 2700 µF | 2200 µF | 2700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 80 V | 50 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz | 3.69 A @ 120 Hz | 2.93 A @ 120 Hz | 2.21 A @ 120 Hz | 2.35 A @ 120 Hz | 2.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.875 A @ 50 kHz | 4.2435 A @ 50 kHz | 3.3695 A @ 50 kHz | 2.5415 A @ 50 kHz | 2.7025 A @ 50 kHz | 2.898 A @ 50 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 2.047" (52.00mm) | 1.654" (42.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) | 1.260" (32.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
