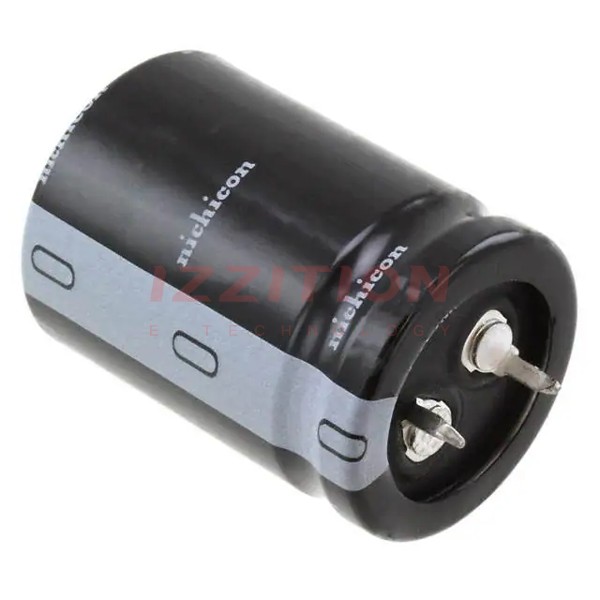

| Part Number | LLS1E123MELA | LLS1E123MELB | LLS1V123MELA | LLS1E153MELA | LLS1E123MELZ | LLS1E183MELA | LLS1E223MELA | LLS1C123MELA | LLS1E103MELA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Capacitance | 12000 µF | 12000 µF | 12000 µF | 15000 µF | 12000 µF | 18000 µF | 22000 µF | 12000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 35 V | 25 V | 25 V | 25 V | 25 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.63 A @ 120 Hz | 3.8 A @ 120 Hz | 4.15 A @ 120 Hz | 4.1 A @ 120 Hz | 3.77 A @ 120 Hz | 4.68 A @ 120 Hz | 5.19 A @ 120 Hz | 3.01 A @ 120 Hz | 3.16 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.1745 A @ 50 kHz | 4.37 A @ 50 kHz | 4.7725 A @ 50 kHz | 4.715 A @ 50 kHz | 4.3355 A @ 50 kHz | 5.382 A @ 50 kHz | 5.9685 A @ 50 kHz | 3.4615 A @ 50 kHz | 3.634 A @ 50 kHz |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.063" (27.00mm) | 1.850" (47.00mm) | 1.654" (42.00mm) | 1.654" (42.00mm) | 1.850" (47.00mm) | 2.047" (52.00mm) | 1.063" (27.00mm) | 1.260" (32.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
