Nichicon-LLG2E681MELZ45 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	680 µF
Tolerance:	±20%
Voltage - Rated:	250 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	2.5 A @ 120 Hz
Ripple Current @ High Frequency:	3.75 A @ 50 kHz
Impedance:	-
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	0.866" Dia (22.00mm)
Height - Seated (Max):	1.850" (47.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

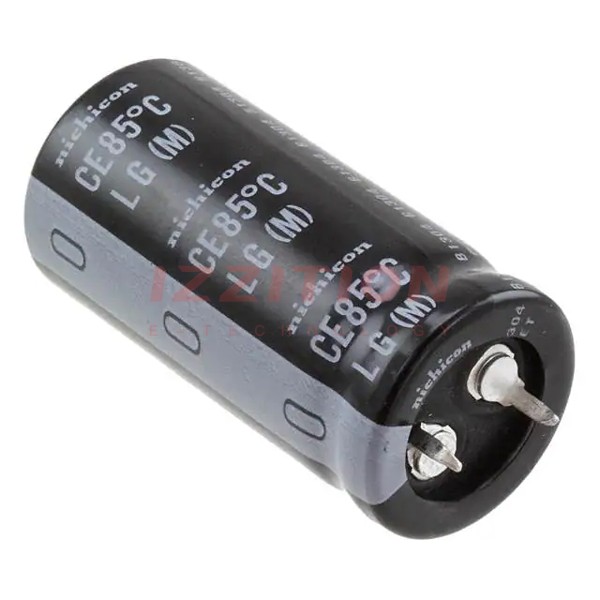

Nichicon LLG2E681MELZ45
