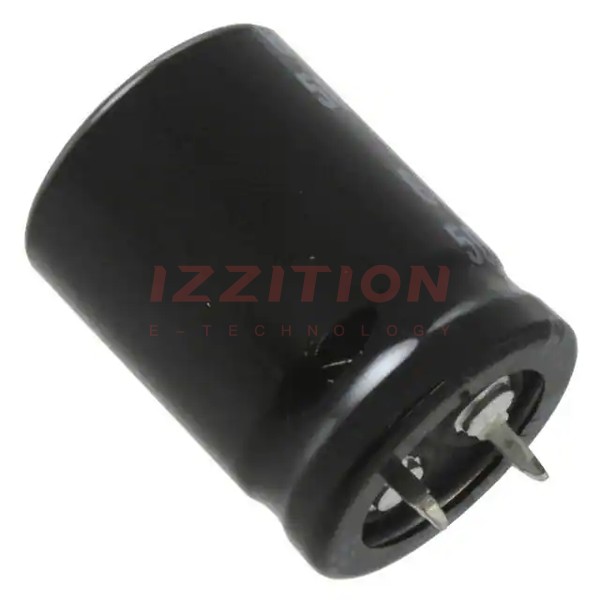

Nichicon LKX2W820MESZ30

Manufacturer No:
LKX2W820MESZ30
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
LKX2W820MESZ30 Datasheet
ECAD Model:
-
Description:
CAP ALUM 82UF 20% 450V SNAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:82 µF
Tolerance:±20%
Voltage - Rated:450 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-25°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:Audio
Ripple Current @ Low Frequency:640 mA @ 120 Hz
Ripple Current @ High Frequency:915.2 mA @ 50 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:0.866" Dia (22.00mm)
Height - Seated (Max):1.260" (32.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
0 Remaining View Similar

In Stock

$4.27
79

Please send RFQ , we will respond immediately.
