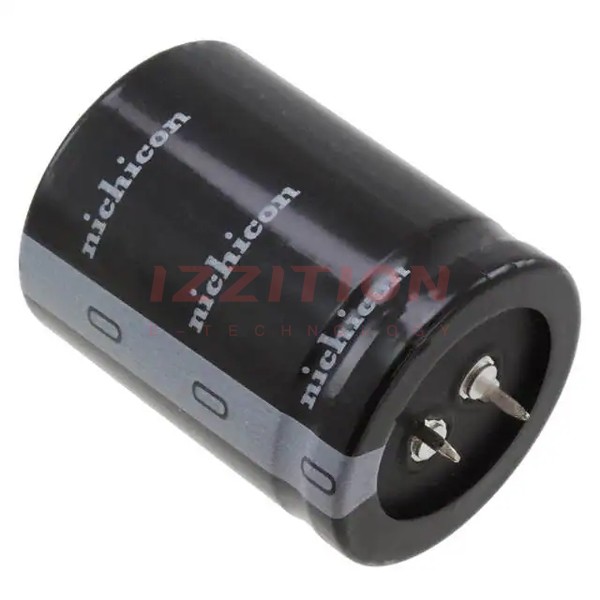

Nichicon-LKX2G561MESC45 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	400 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	Audio
Ripple Current @ Low Frequency:	1.9 A @ 120 Hz
Ripple Current @ High Frequency:	2.717 A @ 50 kHz
Impedance:	-
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	1.850" (47.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

Nichicon LKX2G561MESC45
