Please send RFQ , we will respond immediately.

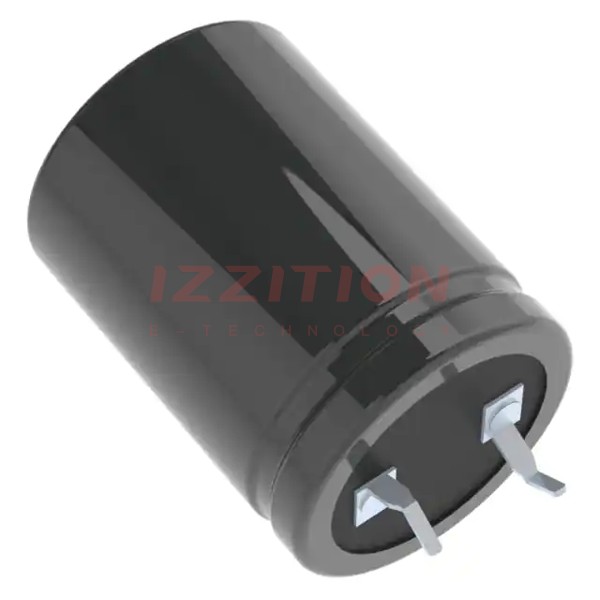

| Part Number | LKS1H332MESZ | LKS1J332MESZ | LKS1E332MESZ | LKS1H332MESA |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 3300 µF | 3300 µF | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 63 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 2.15 A @ 120 Hz | 2.45 A @ 120 Hz | 1.4 A @ 120 Hz | 2.15 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.378" (35.00mm) | 0.866" (22.00mm) | 0.984" (25.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
