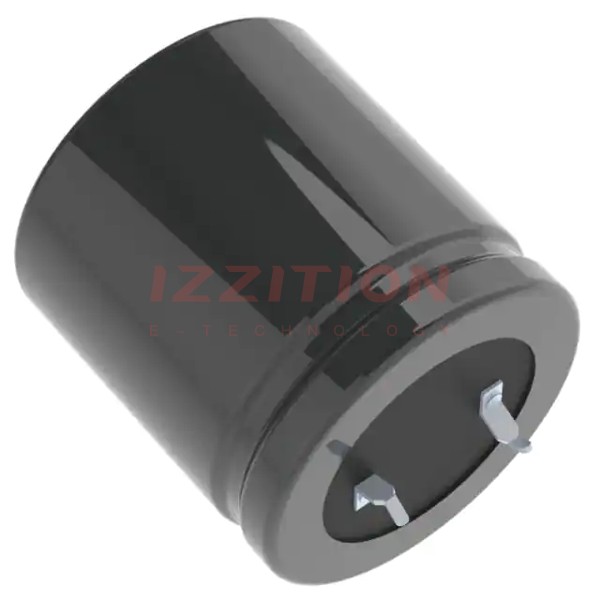

| Part Number | LKG2A821MESAAK | LKG2A821MESYAK | LKG2A821MESZAK | LKG2A821MESACK |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 820 µF | 820 µF | 820 µF | 820 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz | 1.85 A @ 120 Hz | 1.85 A @ 120 Hz | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 0.787" Dia (20.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.457" (37.00mm) | 1.260" (32.00mm) | 1.654" (42.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
