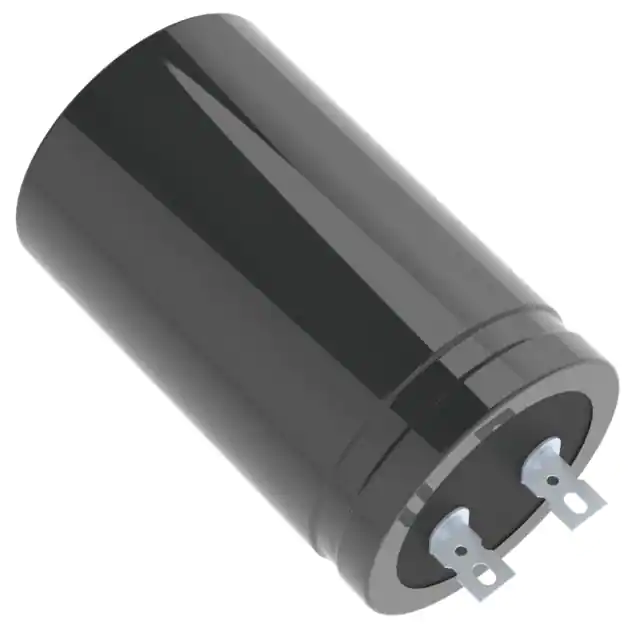

| Part Number | LKG1J103MKZS | LKG1J153MKZS | LKG1K103MKZS |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 10000 µF | 15000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 80 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 6.2 A @ 120 Hz | 8.7 A @ 120 Hz | 7.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - |
| Impedance | - | - | - |
| Lead Spacing | 0.709" (18.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) | 2.480" Dia (63.00mm) | 2.480" Dia (63.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) | 3.268" (83.00mm) | 3.268" (83.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Solder Lug | Radial, Can - Solder Lug | Radial, Can - Solder Lug |
