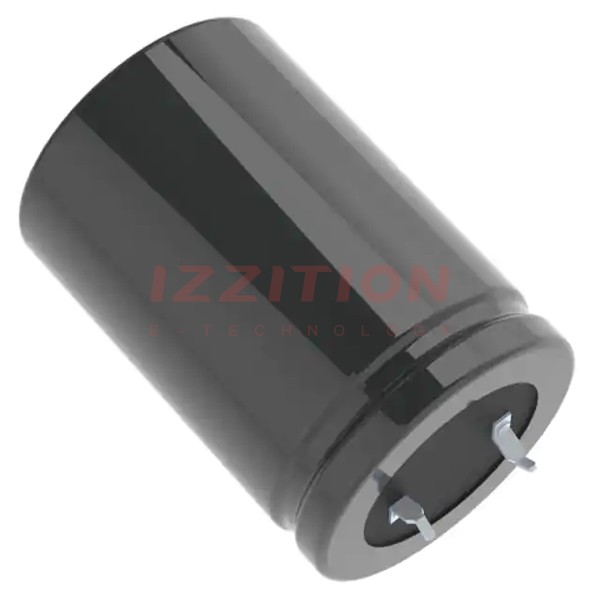

| Part Number | LKG1H472MESAAK | LKG1H472MESYAK | LKG1J472MESAAK | LKG1H472MESABK | LKG1H472MESZAK | LKG1H272MESAAK |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 4700 µF | 4700 µF | 4700 µF | 4700 µF | 4700 µF | 2700 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 63 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 2.7 A @ 120 Hz | 2.75 A @ 120 Hz | 3.2 A @ 120 Hz | 3.4 A @ 120 Hz | 2.6 A @ 120 Hz | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | - | - | - |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 0.787" Dia (20.00mm) | 0.984" Dia (25.00mm) | 0.984" Dia (25.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 2.047" (52.00mm) | 2.047" (52.00mm) | 1.969" (50.00mm) | 1.850" (47.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
