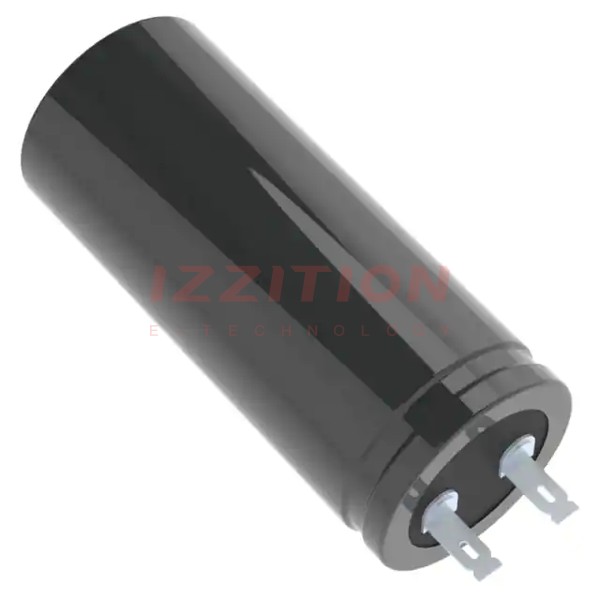

| Part Number | LKG1H103MKN | LKG1J103MKN | LKG1H153MKN | LKG1H103MKNS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10000 µF | 10000 µF | 15000 µF | 10000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 63 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 4.6 A @ 120 Hz | 4.9 A @ 120 Hz | 6.1 A @ 120 Hz | 6.1 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) | 3.268" (83.00mm) | 3.268" (83.00mm) | 4.055" (103.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Solder Lug | Radial, Can - Solder Lug | Radial, Can - Solder Lug | Radial, Can - Solder Lug |
