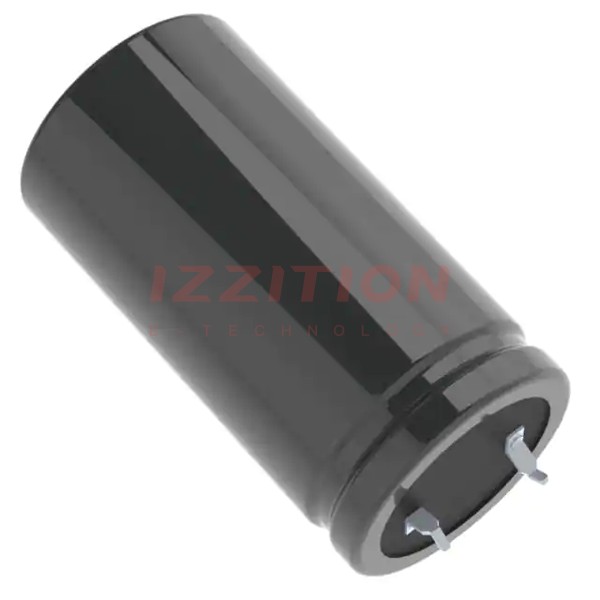

| Part Number | LKG1C332MESYCK | LKG1C392MESYCK | LKG1C332MESACK | LKG1C332MESCCK |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 3300 µF | 3900 µF | 3300 µF | 3300 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz | 2.3 A @ 120 Hz | 2 A @ 120 Hz | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) | 0.787" Dia (20.00mm) | 0.984" Dia (25.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) | 2.047" (52.00mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
