Nichicon-LGY2A821MELZ30 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	820 µF
Tolerance:	±20%
Voltage - Rated:	100 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.3 A @ 120 Hz
Ripple Current @ High Frequency:	1.495 A @ 50 kHz
Impedance:	-
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	0.866" Dia (22.00mm)
Height - Seated (Max):	1.260" (32.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

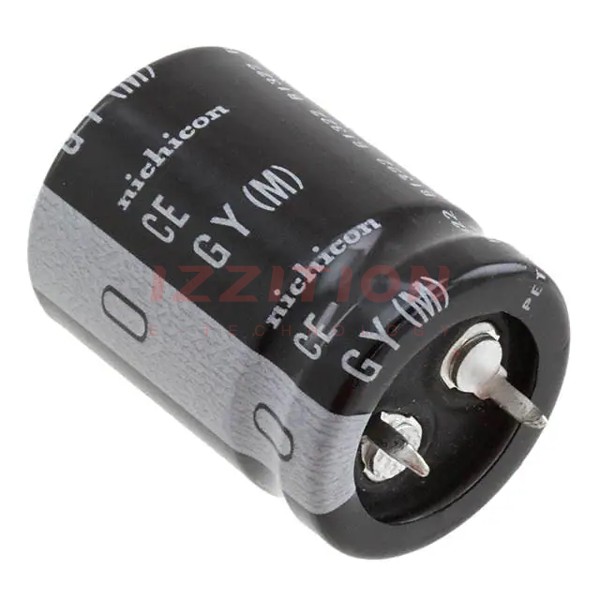

Nichicon LGY2A821MELZ30
