LGY1K152MELA25
  • Share:

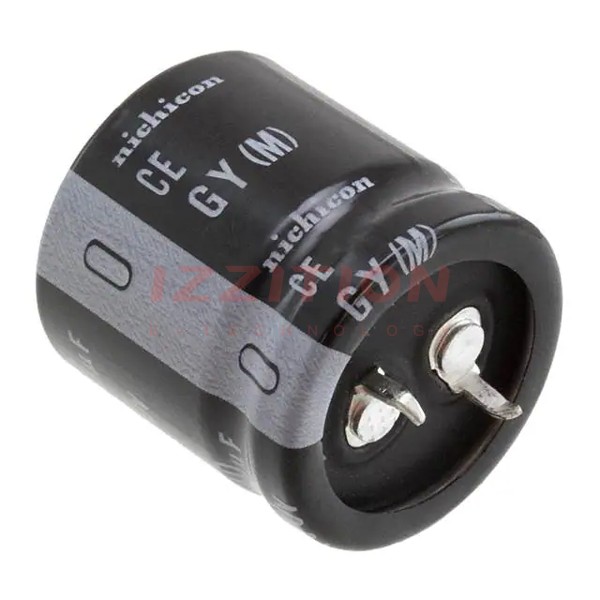

Nichicon LGY1K152MELA25

Manufacturer No:
LGY1K152MELA25
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
LGY1K152MELA25 Datasheet
ECAD Model:
-
Description:
CAP ALUM 1500UF 20% 80V SNAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:1500 µF
Tolerance:±20%
Voltage - Rated:80 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:5000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:1.6 A @ 120 Hz
Ripple Current @ High Frequency:1.84 A @ 50 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:0.984" Dia (25.00mm)
Height - Seated (Max):1.063" (27.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
0 Remaining View Similar

In Stock

$3.57
82

Please send RFQ , we will respond immediately.

Similar Products

Part Number LGY1K152MELA25 LGY1J152MELA25   LGY1K122MELA25
Manufacturer Nichicon Nichicon Nichicon
Product Status Active Active Active
Capacitance 1500 µF 1500 µF 1200 µF
Tolerance ±20% ±20% ±20%
Voltage - Rated 80 V 63 V 80 V
ESR (Equivalent Series Resistance) - - -
Lifetime @ Temp. 5000 Hrs @ 105°C 5000 Hrs @ 105°C 5000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Polarization Polar Polar Polar
Ratings - - -
Applications General Purpose General Purpose General Purpose
Ripple Current @ Low Frequency 1.6 A @ 120 Hz 1.5 A @ 120 Hz 1.5 A @ 120 Hz
Ripple Current @ High Frequency 1.84 A @ 50 kHz 1.725 A @ 50 kHz 1.725 A @ 50 kHz
Impedance - - -
Lead Spacing 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm) 0.984" Dia (25.00mm) 0.984" Dia (25.00mm)
Height - Seated (Max) 1.063" (27.00mm) 1.063" (27.00mm) 1.063" (27.00mm)
Surface Mount Land Size - - -
Mounting Type Through Hole Through Hole Through Hole
Package / Case Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In
