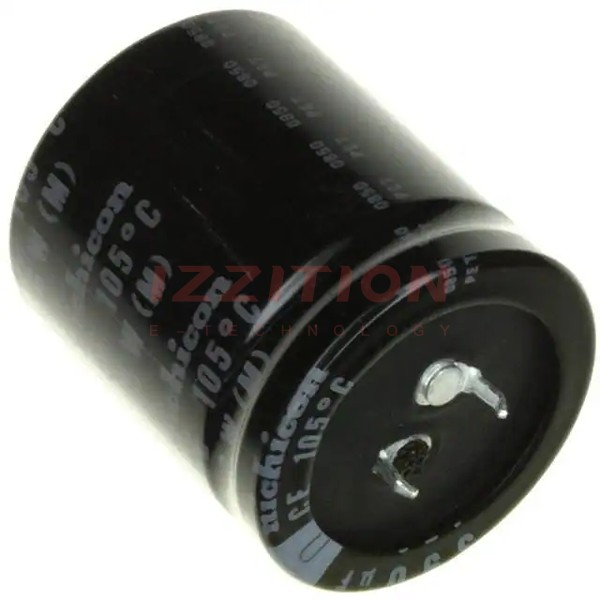

| Part Number | LGW2E102MELC35 | LGX2E102MELC35 |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 250 V | 250 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz | 2.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.95 A @ 50 kHz | 3.57 A @ 50 kHz |
| Impedance | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) | 1.457" (37.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In |
