Please send RFQ , we will respond immediately.

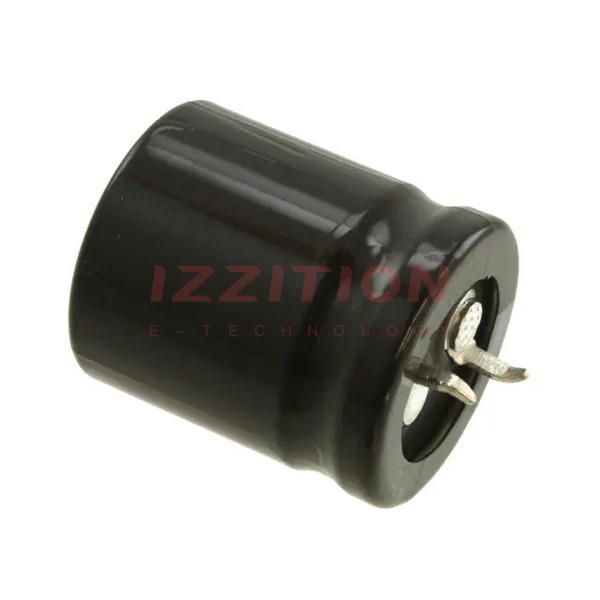

| Part Number | LGU2F221MELZ | LGU2G221MELZ | LGU2P221MELZ | LGU2F271MELZ | LGU2E221MELZ | LGU2F121MELZ | LGU2F221MELA | LGU2F221MELB | LGU2F221MELY |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF | 270 µF | 220 µF | 120 µF | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 315 V | 400 V | 220 V | 315 V | 250 V | 315 V | 315 V | 315 V | 315 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.04 A @ 120 Hz | 1.1 A @ 120 Hz | 1 A @ 120 Hz | 1.16 A @ 120 Hz | 1 A @ 120 Hz | 750 mA @ 120 Hz | 1.04 A @ 120 Hz | 1.04 A @ 120 Hz | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.4872 A @ 50 kHz | 1.573 A @ 50 kHz | 1.5 A @ 50 kHz | 1.6588 A @ 50 kHz | 1.5 A @ 50 kHz | 1.0725 A @ 50 kHz | 1.4872 A @ 50 kHz | 1.4872 A @ 50 kHz | 1.43 A @ 50 kHz |
| Impedance | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) | 1.969" (50.00mm) | 0.984" (25.00mm) | 1.850" (47.00mm) | 0.984" (25.00mm) | 1.063" (27.00mm) | 1.260" (32.00mm) | 1.063" (27.00mm) | 2.047" (52.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
