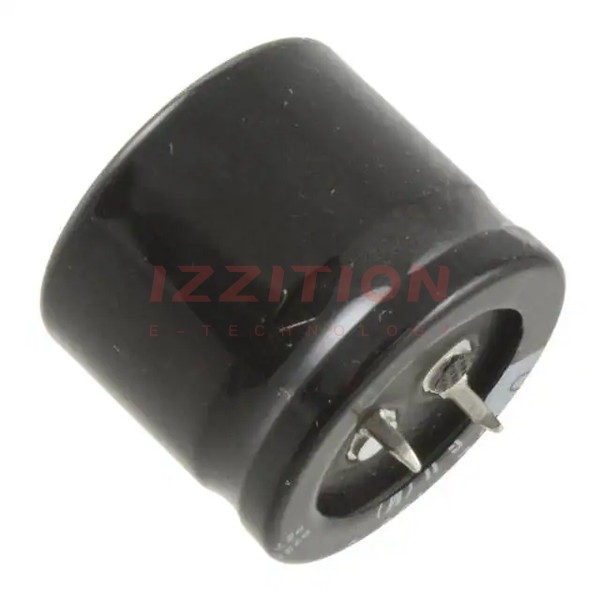

| Part Number | LGU2C561MELB | LGU2E561MELB | LGU2C561MELY | LGU2D561MELB | LGU2C561MELZ | LGU2C561MELA |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 250 V | 160 V | 200 V | 160 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.67 A @ 120 Hz | 1.8 A @ 120 Hz | 1.5 A @ 120 Hz | 1.67 A @ 120 Hz | 1.67 A @ 120 Hz | 1.67 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.505 A @ 50 kHz | 2.7 A @ 50 kHz | 2.25 A @ 50 kHz | 2.505 A @ 50 kHz | 2.505 A @ 50 kHz | 2.505 A @ 50 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 0.787" Dia (20.00mm) | 1.181" Dia (30.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) | 1.378" (35.00mm) | 1.575" (40.00mm) | 0.984" (25.00mm) | 1.378" (35.00mm) | 1.181" (30.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
