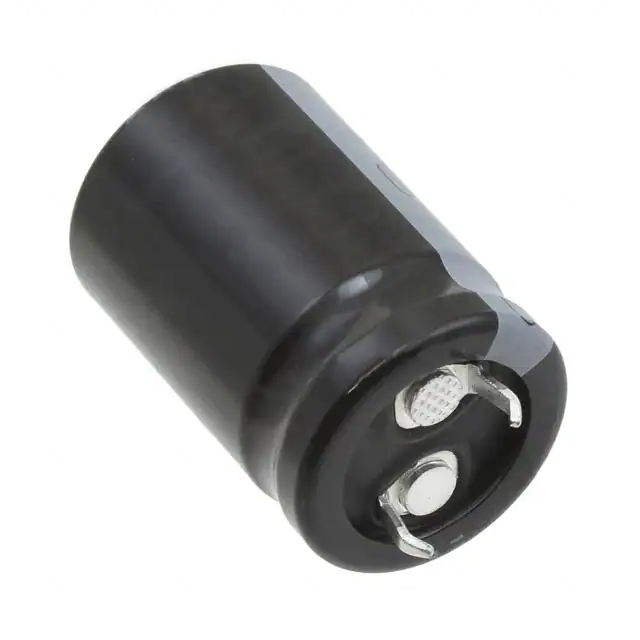

| Part Number | LGU2C331MELY | LGU2E331MELY | LGU2C391MELY | LGU2D331MELY |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 390 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 160 V | 250 V | 160 V | 200 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz | 1.2 A @ 120 Hz | 1.3 A @ 120 Hz | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 50 kHz | 1.8 A @ 50 kHz | 1.95 A @ 50 kHz | 1.8 A @ 50 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) | 0.787" Dia (20.00mm) | 0.787" Dia (20.00mm) | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) | 1.575" (40.00mm) | 1.181" (30.00mm) | 1.378" (35.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
