LGU1H332MELZ
  • Share:

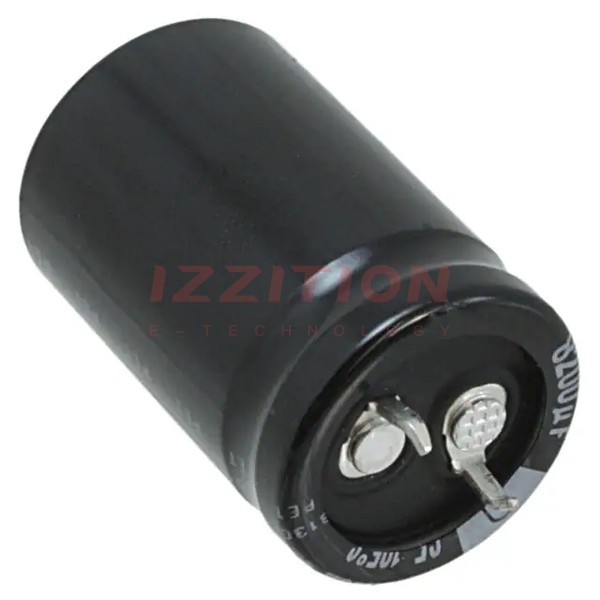

Nichicon LGU1H332MELZ

Manufacturer No:
LGU1H332MELZ
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
LGU1H332MELZ Datasheet
ECAD Model:
-
Description:
CAP ALUM 3300UF 20% 50V SNAP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:3300 µF
Tolerance:±20%
Voltage - Rated:50 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:1.98 A @ 120 Hz
Ripple Current @ High Frequency:2.277 A @ 50 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:0.866" Dia (22.00mm)
Height - Seated (Max):1.457" (37.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
0 Remaining View Similar

In Stock

$3.41
214

Please send RFQ , we will respond immediately.

Similar Products

Part Number LGU1H332MELZ LGU1V332MELZ   LGU1H392MELZ   LGU1J332MELZ   LGU1H332MELA
Manufacturer Nichicon Nichicon Nichicon Nichicon Nichicon
Product Status Active Active Active Obsolete Active
Capacitance 3300 µF 3300 µF 3900 µF 3300 µF 3300 µF
Tolerance ±20% ±20% ±20% ±20% ±20%
Voltage - Rated 50 V 35 V 50 V 63 V 50 V
ESR (Equivalent Series Resistance) - - - - -
Lifetime @ Temp. 3000 Hrs @ 105°C 3000 Hrs @ 105°C 3000 Hrs @ 105°C 3000 Hrs @ 105°C 3000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Polarization Polar Polar Polar Polar Polar
Ratings - - - - -
Applications General Purpose General Purpose General Purpose General Purpose General Purpose
Ripple Current @ Low Frequency 1.98 A @ 120 Hz 1.45 A @ 120 Hz 2.25 A @ 120 Hz 2.33 A @ 120 Hz 2 A @ 120 Hz
Ripple Current @ High Frequency 2.277 A @ 50 kHz 1.6675 A @ 50 kHz 2.5875 A @ 50 kHz 2.6795 A @ 50 kHz 2.3 A @ 50 kHz
Impedance - - - - -
Lead Spacing 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm) 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.866" Dia (22.00mm) 0.984" Dia (25.00mm)
Height - Seated (Max) 1.457" (37.00mm) 1.063" (27.00mm) 1.654" (42.00mm) 1.850" (47.00mm) 1.260" (32.00mm)
Surface Mount Land Size - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In Radial, Can - Snap-In
