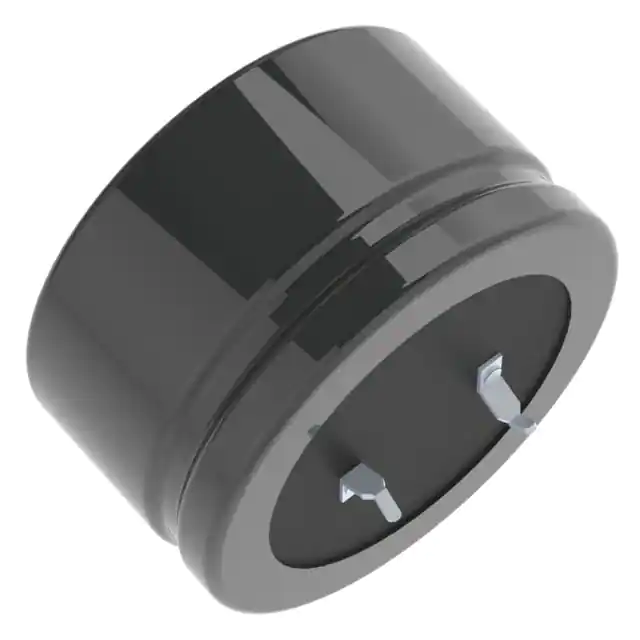

| Part Number | LGJ2E151MELB15 | LGJ2E181MELB15 | LGJ2E151MELA15 |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 150 µF | 180 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 250 V | 250 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz | 750 mA @ 120 Hz | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 50 kHz | 1.125 A @ 50 kHz | 1.05 A @ 50 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
