Nichicon-LGG2D222MELC40 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	200 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	2.92 A @ 120 Hz
Ripple Current @ High Frequency:	4.38 A @ 50 kHz
Impedance:	-
Lead Spacing:	0.394" (10.00mm)
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	1.654" (42.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In

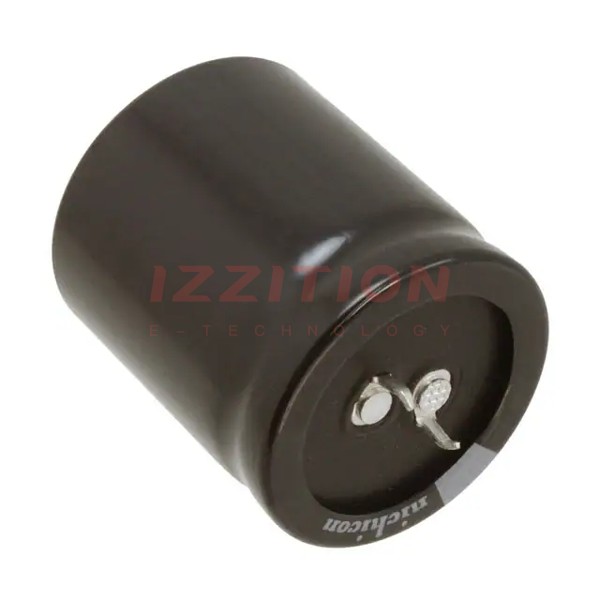

Nichicon LGG2D222MELC40
