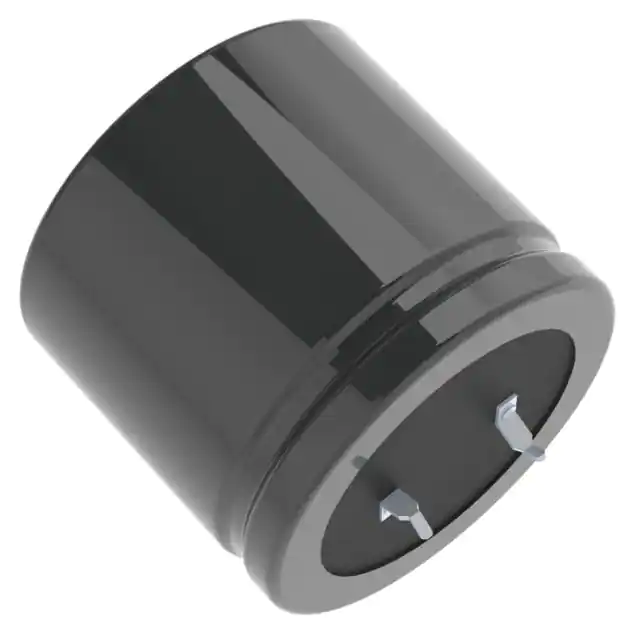

| Part Number | LAK2G121MELB25 | LAQ2G121MELB25 | LAK2G121MELB35 | LAK2G101MELB25 |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 120 µF | 120 µF | 120 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 400 V | 400 V | 400 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz | 760 mA @ 120 Hz | - | 530 mA @ 120 Hz |
| Ripple Current @ High Frequency | 690 mA @ 10 kHz | 874 mA @ 10 kHz | - | 609.5 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.063" (27.00mm) | 1.457" (37.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
