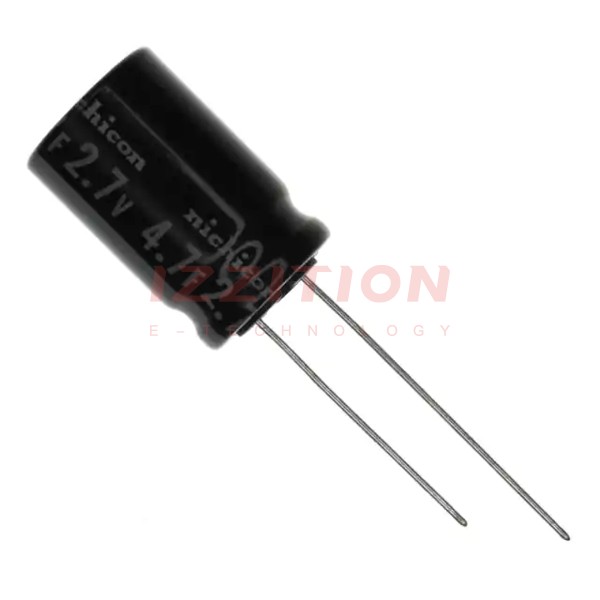

| Part Number | JUMT1475MHD | JUMT1476MHD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 4.7 F | 47 F |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2.7 V | 2.7 V |
| ESR (Equivalent Series Resistance) | 400mOhm @ 1kHz | 100mOhm @ 1kHz |
| Lifetime @ Temp. | 1000 Hrs @ 70°C | 1000 Hrs @ 70°C |
| Termination | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 1.654" (42.00mm) |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C |
