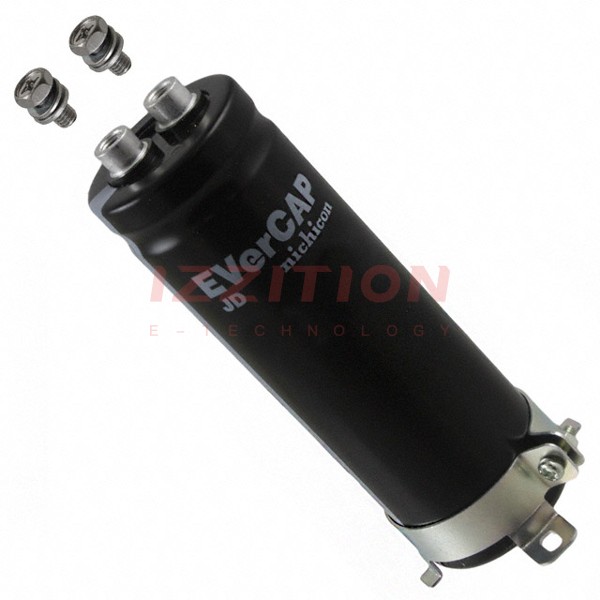

| Part Number | JJD0E807MSEC | JJD0E607MSEC |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Obsolete |
| Capacitance | 800 F | 600 F |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 13mOhm | 16mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C | 2000 Hrs @ 60°C |
| Termination | Screw Terminals | Screw Terminals |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
| Lead Spacing | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.252" (108.00mm) | 3.465" (88.00mm) |
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 60°C |
