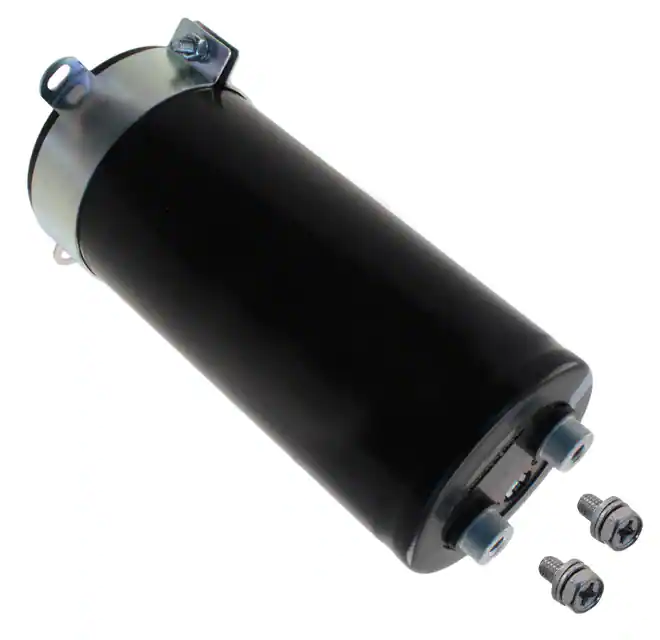

| Part Number | JJD0E408MSEGBB | JJD0E408MSEGBN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 4000 F | 4000 F |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 2.2mOhm | 2.2mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C | 2000 Hrs @ 60°C |
| Termination | Screw Terminals | Screw Terminals |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
| Lead Spacing | 1.126" (28.60mm) | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.024" (153.00mm) | 6.024" (153.00mm) |
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 60°C |
