Please send RFQ , we will respond immediately.

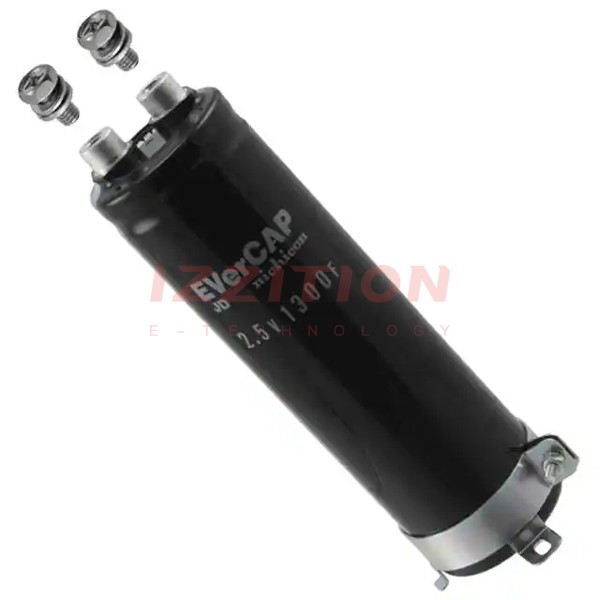

| Part Number | JJD0E138MSEDBN | JJD0E108MSEDBN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 1300 F | 1000 F |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 6mOhm | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C | 2000 Hrs @ 60°C |
| Termination | Screw Terminals | Screw Terminals |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
| Lead Spacing | 0.740" (18.80mm) | 0.740" (18.80mm) |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 5.433" (138.00mm) | 4.252" (108.00mm) |
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 60°C |
