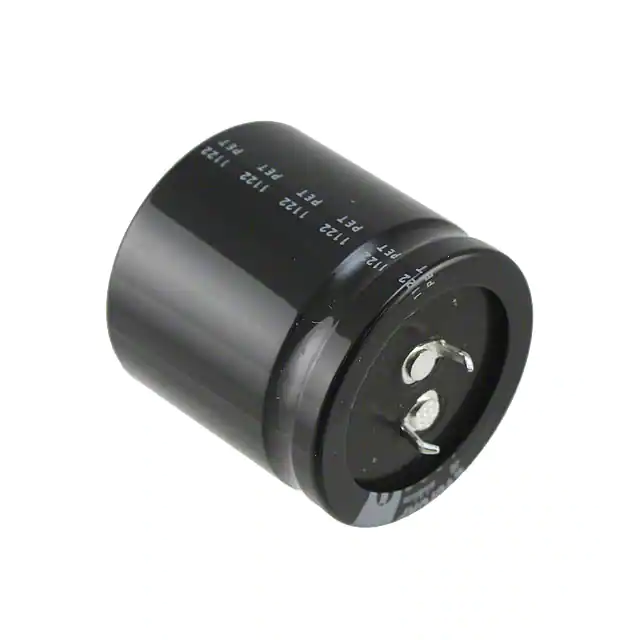

| Part Number | JJC0E396MELA | JJC0E396MELC | JJC0E396MELZ | JJC0E336MELA |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Capacitance | 39 F | 39 F | 39 F | 33 F |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 2.5 V | 2.5 V | 2.5 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 1kHz | 80mOhm | 80mOhm @ 1kHz | 80mOhm @ 1kHz |
| Lifetime @ Temp. | 2000 Hrs @ 60°C | 2000 Hrs @ 60°C | 2000 Hrs @ 60°C | 2000 Hrs @ 60°C |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In | Radial, Can - Snap-In |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 1.378" Dia (35.00mm) | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) | 0.866" (22.00mm) | 1.457" (37.00mm) | 1.260" (32.00mm) |
| Operating Temperature | -25°C ~ 60°C | -25°C ~ 60°C | -25°C ~ 60°C | -25°C ~ 60°C |
