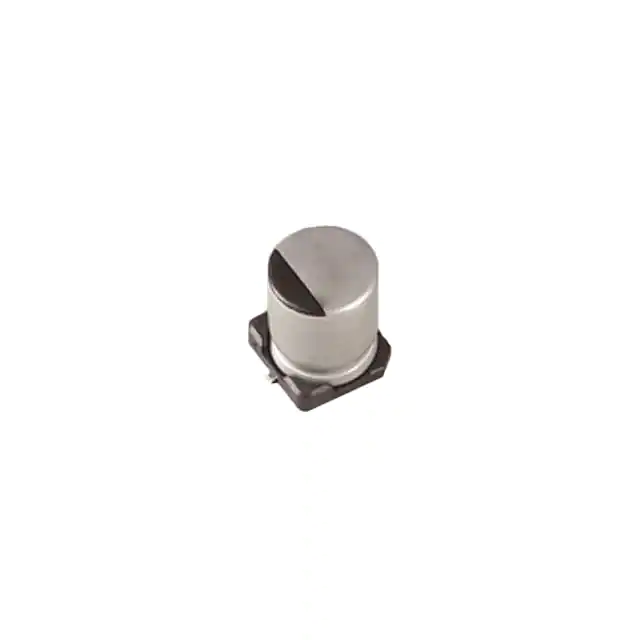

| Part Number | GYD1V101MCQ1GS | GYD1V151MCQ1GS | GYD1V101MCW1GS |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid |
| Capacitance | 100 µF | 150 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 27mOhm | 20mOhm | 27mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz | 270 mA @ 120 Hz | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz | 1.8 A @ 100 kHz | 1.4 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.433" (11.00mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
