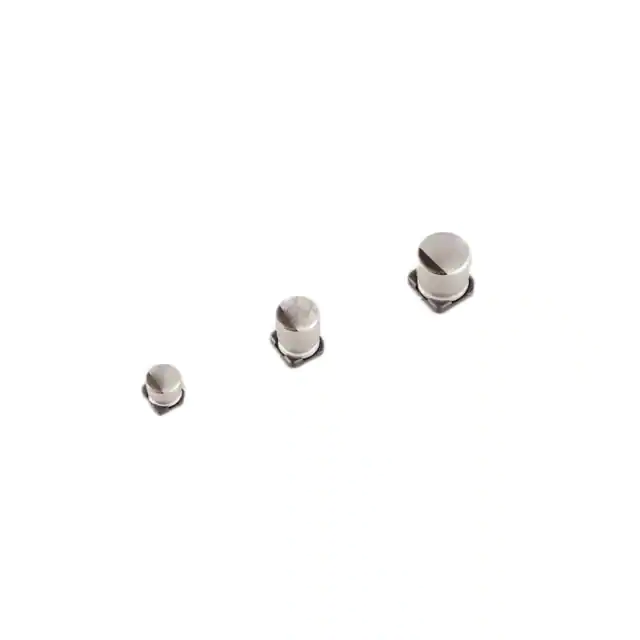

| Part Number | GYC1J100MCQ1GS | GYA1J100MCQ1GS | GYB1J100MCQ1GS |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid |
| Capacitance | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 120mOhm | 120mOhm | 120mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 4000 Hrs @ 125°C | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 125°C | -55°C ~ 105°C |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Applications | Automotive | Automotive | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz | - | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz | 700 mA @ 100 kHz | 1 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
