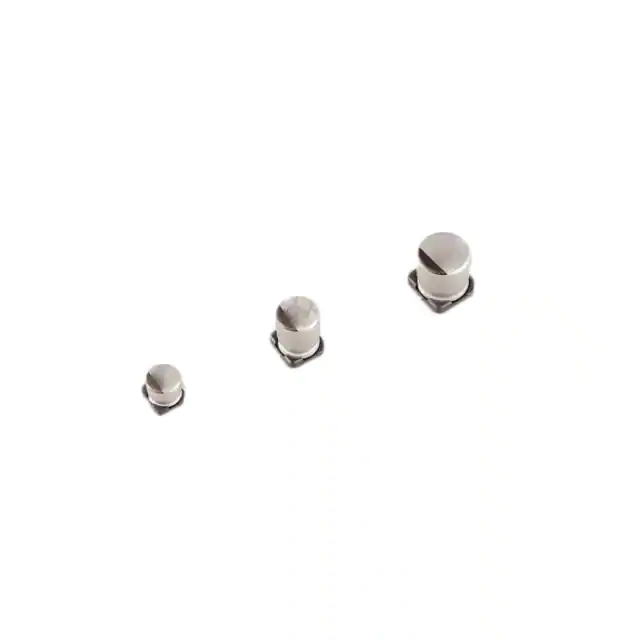

| Part Number | GYC1H330MCW1GS | GYC1J330MCW1GS | GYA1H330MCW1GS | GYB1H330MCW1GS | GYC1H330MCQ1GS |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 63 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 45mOhm | 40mOhm | 40mOhm | 40mOhm | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 4000 Hrs @ 135°C | 4000 Hrs @ 125°C | 10000 Hrs @ 105°C | 2000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 135°C |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | General Purpose | Automotive |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | 240 mA @ 120 Hz | 285 mA @ 120 Hz | 165 mA @ 120 Hz | 240 mA @ 120 Hz | 240 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz | 1.9 A @ 100 kHz | 1.1 A @ 100 kHz | 1.6 A @ 100 kHz | 1.6 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.343" (8.70mm) | 0.433" (11.00mm) | 0.343" (8.70mm) | 0.343" (8.70mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
