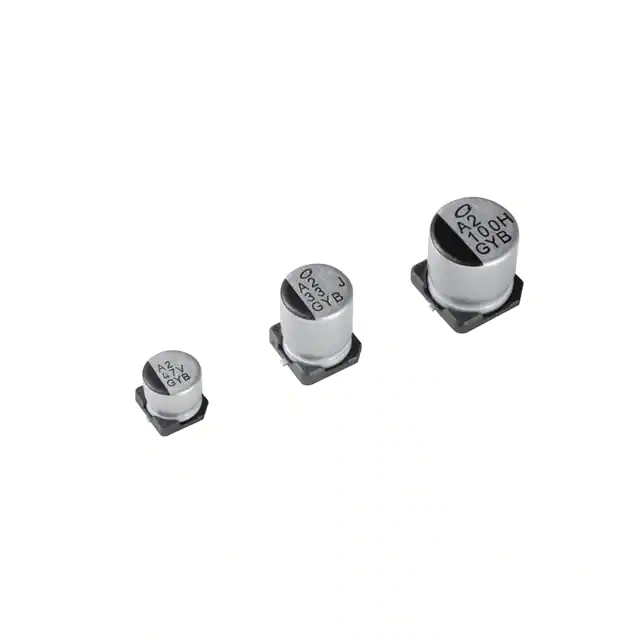

| Part Number | GYB1E560MCQ1GS | GYC1E560MCQ1GS | GYB1J560MCQ1GS | GYA1E560MCQ1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Type | Hybrid | Hybrid | Hybrid | Hybrid |
| Capacitance | 56 µF | 56 µF | 56 µF | 56 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 63 V | 25 V |
| ESR (Equivalent Series Resistance) | 50mOhm | 50mOhm | 30mOhm | 50mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 2000 Hrs @ 135°C | 10000 Hrs @ 105°C | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 135°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Ratings | - | AEC-Q200 | - | AEC-Q200 |
| Applications | General Purpose | Automotive | General Purpose | Automotive |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz | 210 mA @ 120 Hz | 270 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz | 1.4 A @ 100 kHz | 1.8 A @ 100 kHz | 900 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.413" (10.50mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
