Please send RFQ , we will respond immediately.

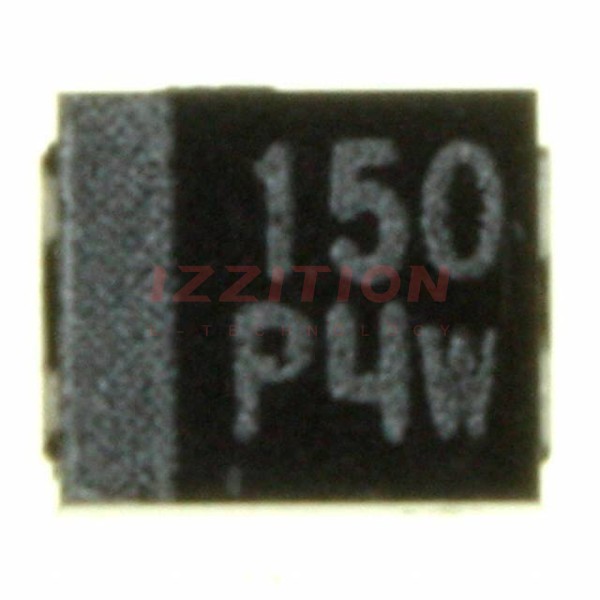

| Part Number | F320G157MBA | F320G107MBA |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 150 µF | 100 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 4 V | 4 V |
| Type | Molded | Molded |
| ESR (Equivalent Series Resistance) | 45mOhm @ 100kHz | 70mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.083" (2.10mm) |
| Lead Spacing | - | - |
| Manufacturer Size Code | B | B |
| Ratings | - | - |
| Features | General Purpose | General Purpose |
