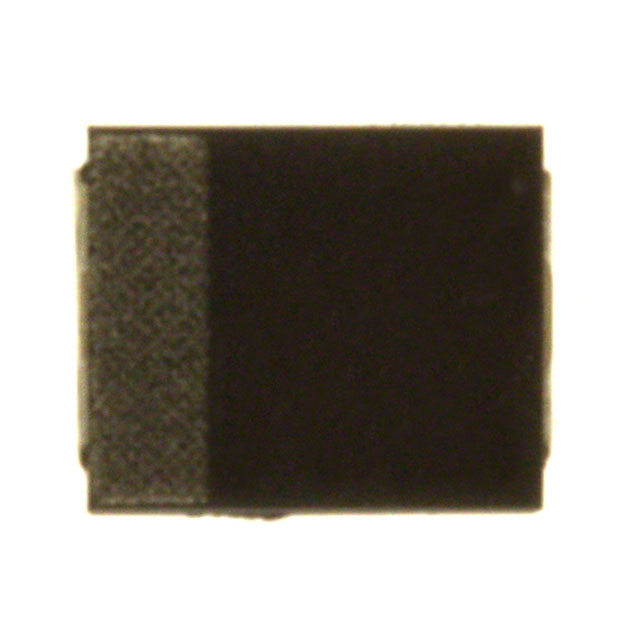

Nichicon-F311A336MBA - Tantalum - Polymer Capacitors Product Specifications and Latest Quotes

Capacitance:	33 µF
Tolerance:	±20%
Voltage - Rated:	10 V
Type:	Molded
ESR (Equivalent Series Resistance):	70mOhm @ 100kHz
Operating Temperature:	-55°C ~ 105°C
Lifetime @ Temp.:	-
Mounting Type:	Surface Mount
Package / Case:	1411 (3528 Metric)
Size / Dimension:	0.134" L x 0.110" W (3.40mm x 2.80mm)
Height - Seated (Max):	0.047" (1.20mm)
Lead Spacing:	-
Manufacturer Size Code:	B
Ratings:	-
Features:	General Purpose

Nichicon F311A336MBA
