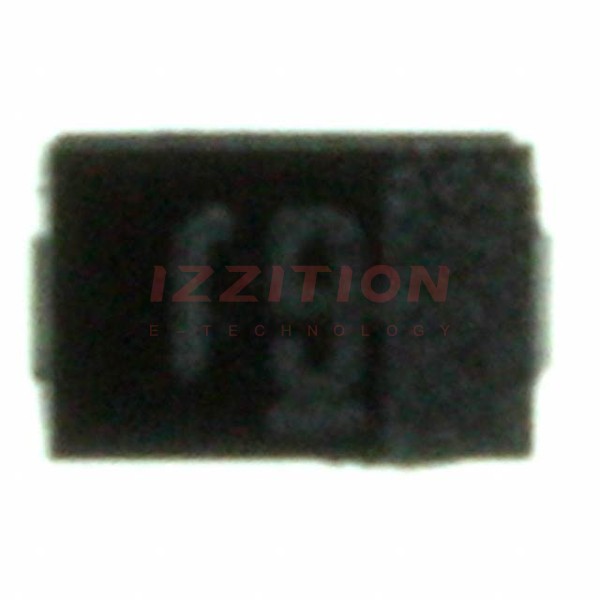

| Part Number | F310G226MPA | F310E226MPA |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 22 µF | 22 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 4 V | 2.5 V |
| Type | Molded | Molded |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz | 200mOhm @ 100kHz |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - |
| Manufacturer Size Code | P | P |
| Ratings | - | - |
| Features | General Purpose | General Purpose |
